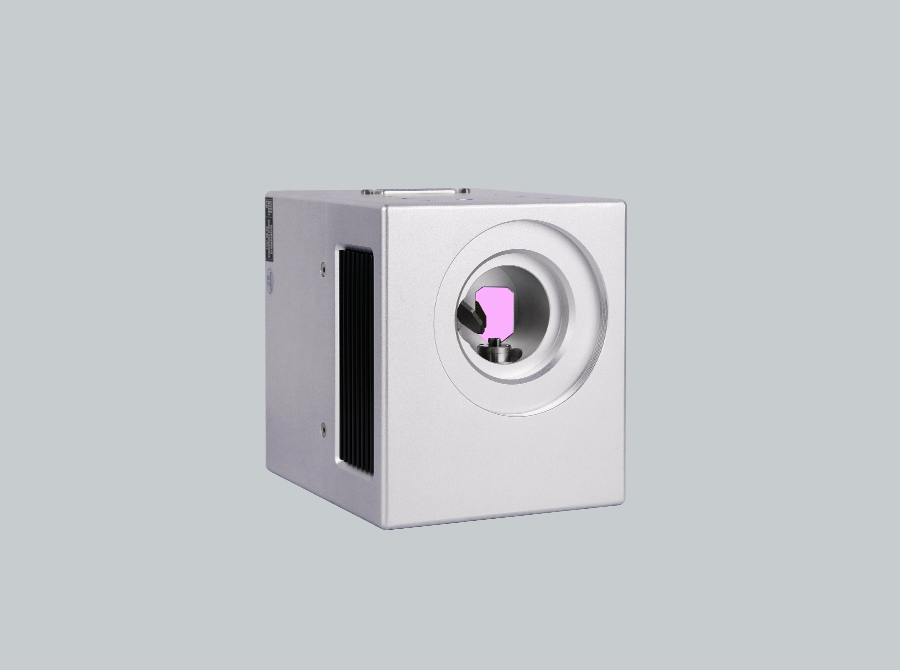

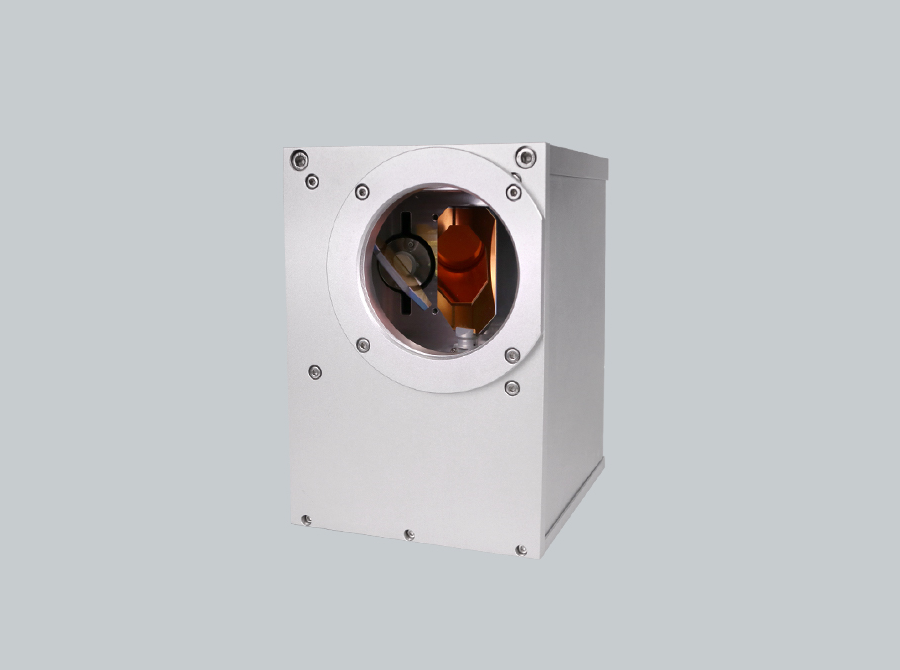

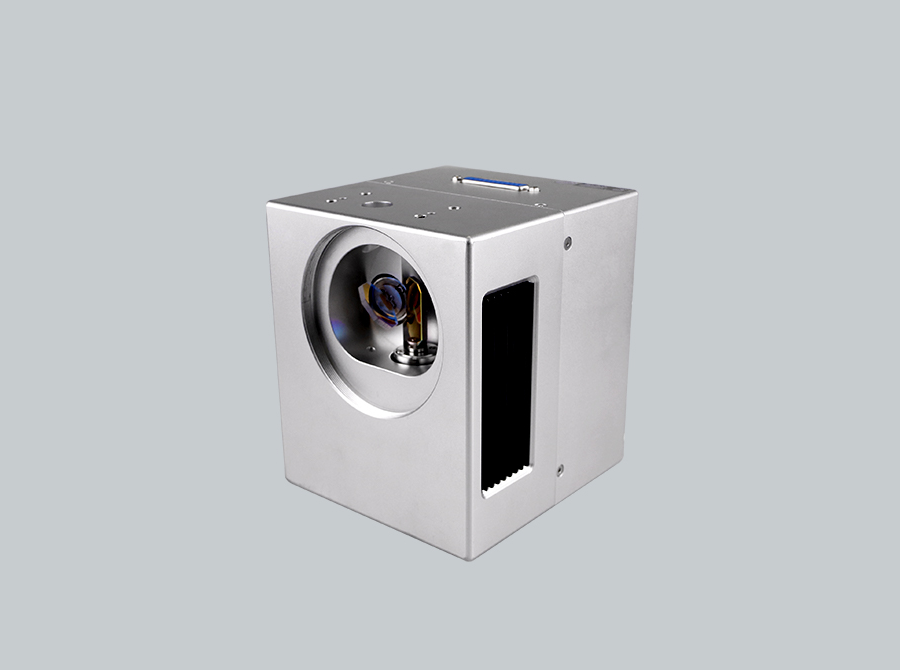

光电振镜方头

食品性能 1.配置丰富，7-50mm孔径可选，各种镀膜可选；
2.优选振镜镜片，镀膜多样，平整度好，损伤阈值高；
3.优秀光电编码器性能，线性度高，漂移低；
4.丰富的驱动板调试经验，一致性高，性能稳定；
5.严苛的出厂检测标准，故障率低。

产品应用

Ultrascan I模似振镜的物料规格型号覆盖率进一步，满足对性知识价比符合要求高或混用进口商相近的物料的客。如高计算精度镭雕，紧密切开，紧密微粗加工等运用。Ultrascan II模似振镜货品材质网络覆盖率先，适于对速率追求高的客人。如速度航空激光机器刻字，精细激光机器刻字，精细微加工工艺，SLA，极耳打磨，激光机器清洁等运用。

产品参数

UltraScan10	高精度激光打标Precision marking	着陆激光标Marking-on-the-fly	FPC 及SLA 软件应用FPC and SLA applications
闸道黑斑Input Beam Aperture (mm)	10	10	10
光柱位移Beam Displacement (mm)	12.54	12.54	12.54
跟风出现偏差的原因Tracking Error (ms)	0.18	0.14	0.16
反复计算精度Repeatability (µrad)	＜2	＜3	＜2
零位漂移Offset Drift (µrad/K)	＜15	＜15	＜15
增益控制漂移Gain Drift (ppm/K)	＜80	＜80	＜80
8小时左右上面的漂移Long-term drift over 8 hours (mrad)	＜0.3	＜0.4	＜0.15
1%全旅行线路1% of full scale (ms)	0.40	0.30	0.35
10%全形成10% of full scale (ms)	1.20	1.00	1.10
确定网络速度Positioning Speed (m/s)	10.0	20.0	15.0
扫描仪坡度Typical Scan Angle (°)	±12.5	±12.5	±12.5
收获差值Gain Error (mrad)	<5	<5	<5
零位出现偏差的原因Zero Offset (mrad)	<5	<5	<5
非线型度Nonlinearity (%)	<0.4	<0.4	<0.4
开关电源标准要求Power Requirements	±15VDC, ≥3A	±15VDC, ≥3A	±15VDC, ≥3A
阿拉伯数字界面Digital Interface	XY2-100	XY2-100	XY2-100
运行溫度Operation Temperature (℃)	25±10	25±10	25±10
总重Weight (kg)	1.9	1.9	1.9

UltraScan	UltraScan7	UltraScan14	UltraScan20	UltraScan30	UltraScan50
考区光点Input Beam Aperture (mm)	7	14	20	30	50
光柱位移Beam Displacement (mm)	9.77	16.42	25.25	35.61	62.25
变换位置数据误差Tracking Error (ms)	0.15	0.23	0.45	0.70	1
多个要求Repeatability (µrad)	＜2	＜2	＜2	＜2	＜2
零位漂移Offset Drift (µrad/K)	＜20	＜15	＜15	＜15	＜15
增益控制漂移Gain Drift (ppm/K)	＜100	＜80	＜80	＜80	＜80
8半小时以上的漂移Long-term drift over 8 hours (mrad)	＜0.4	＜0.3	＜0.3	＜0.3	＜0.3
1%全行程安排1% of full scale (ms)	0.22	0.65	0.80	1.20	1.5
10%全行程安排10% of full scale (ms)	0.8	1.60	2.50	4.50	6.5
标记效率Positioning Speed (m/s)	25	10.0	5.0	3.0	1
扫描拍照维度Typical Scan Angle (°)	±12.5	±12.5	±12.5	±12.5	±12.5
收获确定误差Gain Error (mrad)	<5	<5	<5	<5	<5
零位确定误差Zero Offset (mrad)	<5	<5	<5	<5	<5
非线型度Nonlinearity (%)	<0.4	<0.4	<0.4	<0.4	<0.4
电源适配器规定要求 Power Requirements	±15VDC, ≥3A	±15VDC, ≥3A	±15VDC, ≥3A	±15VDC, ≥3A	±15VDC, ≥3A
自然数接口标准 Digital Interface	XY2-100	XY2-100	XY2-100	XY2-100	XY2-100
运行湿度Operation Temperature (℃)	25±10	25±10	25±10	25±10	25±10
称重Weight (kg)	1.6	2.3	5.0	5.2	8.8

UltraScan II	UltraScan II 10	UltraScan II 14	UltraScan II 20	UltraScan II 30
渠道亮斑Input Beam Aperture (mm)	10	14	20	30
光柱位移Beam Displacement (mm)	12.54	16.42	25.25	35.53
锁定目标误差度Tracking Error (ms)	0.12	0.15	0.35	0.6
重新精确度Repeatability (µrad)	＜2	＜2	＜2	＜2
零位漂移Offset Drift (µrad/K)	＜12	＜12	＜12	＜12
增益控制漂移Gain Drift (ppm/K)	＜50	＜50	＜50	＜50
8分钟以上的漂移Long-term drift over 8 hours (mrad)	＜0.15	＜0.15	＜0.15	＜0.15
1%全日程1% of full scale (ms)	0.30	0.35	0.70	1.10
10%全往返10% of full scale (ms)	0.8	0.90	2.40	4.40
定位系统线速度Positioning Speed (m/s)	18	14.0	6.0	4.0
测试方面Typical Scan Angle (°)	±12.5	±12.5	±12.5	±12.5
收获数据误差Gain Error (mrad)	<5	<5	<5	<5
零位差值Zero Offset (mrad)	<5	<5	<5	<5
非线型度Nonlinearity (%)	<0.4	<0.4	<0.4	<0.4
电原请求 Power Requirements	±15VDC, ≥3A	±15VDC, ≥3A	±15VDC, ≥3A	±15VDC, ≥3A
号码接头 Digital Interface	XY2-100	XY2-100	XY2-100	XY2-100
工作上温湿度Operation Temperature (℃)	25±10	25±10	25±10	25±10
载重量Weight (kg)	1.9	2.3	5.0	5.2
